Condensate Pumps That Won’t Flood Your Ceiling
The Little Giant VCMA-20ULS leads most installations on lift height and safety switch reliability. Tight mechanical closets suit the RectorSeal 83352 Mini Blue, since it fits inside a mini split enclosure. Budget installs still get automatic shutoff from the Superior Pump 92312.
A failed condensate pump backs water into the drain pan, then onto a ceiling or floor below. Three pumps stand apart from the rest. The Little Giant VCMA-20ULS pairs a proven safety switch with enough lift for most single zone jobs. Tight mechanical closets favor the RectorSeal 83352 Mini Blue, since its low profile case fits where larger pumps do not. Budget installs still get automatic shutoff protection from the Superior Pump 92312.
Lift height printed on the box rarely matches real world routing, since every elbow and vertical run of tubing eats into rated capacity. Noise matters too, because these pumps often sit inside a closet or above living space. We compared stated lift height, tank capacity, safety switch design and owner reports on noise, cycling frequency and pump lifespan.
What we recommend
Little Giant VCMA-20ULS
HVAC technicians reach for this pump first, and mini split installers stock it by the case. A built in safety switch cuts power to the connected unit if water backs up, protecting finished ceilings below. Owners report years of quiet service across furnaces, air handlers and ductless systems.
Pros
- Widely used, so parts and troubleshooting info are easy to find
- Safety switch protects ceilings and floors below
- Handles furnaces, air handlers and mini splits
Cons
- Low profile tank limits float travel range
- Check valve sold separately for some furnace setups
RectorSeal 83352 Mini Blue Condensate Pump
Ductless mini split heads often leave little room for a pump, so the Mini Blue’s low profile case tucks inside the same enclosure as the indoor unit. Aspen Pumps engineering keeps operating noise well below a standard float switch pump. Owners mount it directly under wall mounted heads with minimal tubing.
Pros
- Small enough to hide inside the indoor unit housing
- Quiet operation suits bedrooms and home offices
- Simple push fit tubing connections
Cons
- Smaller reservoir than furnace rated pumps
- Rated lift trails larger dedicated units
Diversitech CP-22 Condensate Pump
Basement furnaces sometimes need to push condensate up two stories to reach a drain, and the CP-22 is built around that longer run. Its larger internal reservoir cycles less often than compact mini split models. Owners running long vertical tubing report steady performance without repeated priming.
Pros
- Handles longer vertical runs than compact pumps
- Larger tank means fewer pump cycles
- UL listed for standard HVAC installs
Cons
- Bigger housing needs more mounting clearance
- Heavier than mini split specific pumps
Little Giant VCC-20ULS
High efficiency condensing furnaces need a check valve to stop condensate draining back into the pump between cycles, and this model builds one in. That removes a separate part from the install and one more possible leak point. Owners installing alongside new furnaces say it matches manufacturer condensate routing directly.
Pros
- Integrated check valve simplifies furnace installs
- Same reliable base pump as the standard VCMA line
- Safety switch guards against overflow
Cons
- Costs more than the version without a check valve
- One more part to inspect during service

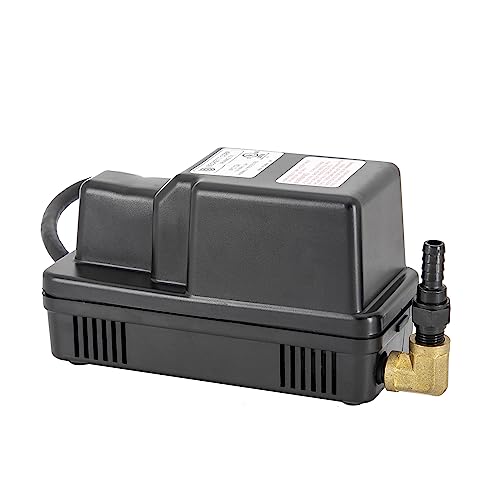

Beckett CP10UL Condensate Pump
Central air handlers and gas furnaces both drip acidic condensate, and this pump’s housing is built to hold up under years of that exposure. A tethered float switch triggers the motor before the reservoir overflows. Owners replacing decades old pumps report an easy like for like swap.
Pros
- Tethered float switch is easy to test by hand
- Housing resists corrosion from acidic condensate
- Common replacement size for older systems
Cons
- Float switch clicks audibly during cycles
- Fewer mounting brackets included than rivals
RectorSeal 83605 Mini Gold Condensate Pump
Multi zone ductless systems can send more condensate volume than a single head pump expects. The Mini Gold’s larger reservoir handles that better than the Mini Blue while still fitting tighter mechanical spaces than a full size furnace pump. Owners running two or more indoor heads on one pump report fewer nuisance shutoffs.
Pros
- Larger reservoir suits multi zone condensate volume
- Still compact enough for tight mechanical spaces
- Quiet enough for rooms nearby
Cons
- Overkill for a single indoor head
- Costs more than the standard Mini Blue
Superior Pump 92312 Condensate Removal Pump
Strip away the extras and this pump still does the core job, moving condensate up and out on a basic float switch. Its compact tank keeps the footprint small in tight mechanical rooms. Owners buying spares for rental properties favor the lower cost per unit.
Pros
- Lower cost makes stocking spares easier
- Compact size fits tight mechanical closets
- Automatic float switch needs no manual reset
Cons
- Shorter rated lift than premium models
- Less documented long term durability
Side by side
| # | Model | Motor | Best for | Score | Price |
|---|---|---|---|---|---|
| 1 | Little Giant VCMA-20ULS | 1/50 HP, 115V | Best overall | 9.4 | Check price |
| 2 | RectorSeal 83352 Mini Blue Condensate Pump | Compact, low profile housing | Best for mini split systems | 9.1 | Check price |
| 3 | Diversitech CP-22 Condensate Pump | 22 ft vertical | Best for high lift installations | 8.9 | Check price |
| 4 | Little Giant VCC-20ULS | 1/50 HP, 115V | Best for high efficiency furnaces | 8.8 | Check price |
| 5 | Beckett CP10UL Condensate Pump | 1/30 HP | Best for furnace and AC condensate | 8.6 | Check price |
| 6 | RectorSeal 83605 Mini Gold Condensate Pump | Compact housing, larger reservoir than Mini Blue | Best for multi zone mini split systems | 8.5 | Check price |
| 7 | Superior Pump 92312 Condensate Removal Pump | 1/30 HP | Best budget | 8.2 | Check price |
How to pick the right one
What should you look for in a condensate pump? Four things decide most purchases: lift height, tank capacity, noise and the safety switch. Lift height sets how far up and over the pump can push water, and real routing with elbows cuts into that rated number. Tank capacity controls how often the motor cycles, since a bigger reservoir means fewer starts per hour. A safety switch is not optional above finished space, because it shuts off the connected equipment before an overflow reaches the ceiling.
Which condensate pump fits a mini split system best? Ductless heads mount high on a wall or hide inside a small enclosure, so size matters more than raw lift here. Compact models like the RectorSeal 83352 Mini Blue tuck into that same tight footprint. Multi zone systems push more volume through one pump, which is why the larger reservoir Mini Gold exists as a step up. Quiet operation also counts, since the pump often sits a few feet from a bed or desk.
What matters for furnaces and high efficiency systems? Condensing furnaces produce acidic condensate that eats through weak materials faster than plain AC drainage does. A built in check valve, like the one on the Little Giant VCC-20ULS, stops water draining back into the pump between cycles. Tethered float switches, used on the Beckett CP10UL, give a simple way to test the pump by hand. Match the pump’s rated lift to the actual vertical run to the drain point, not just the horizontal distance.
How do you size and install a condensate pump correctly? Measure the full vertical rise from the pump to the drain, then add extra allowance for every elbow in the tubing run, since each one adds resistance. Route the discharge line with a slight upward slope throughout and avoid dips where water can pool and freeze. Wire the safety switch into the thermostat or control circuit so the connected equipment actually shuts off on a high water signal. Clean the reservoir and check valve every few months, since algae and dust buildup cause most nuisance failures.
Common questions
What does a condensate pump do?
It collects water dripping from an air conditioner, furnace, dehumidifier or mini split and pumps it up and over to a drain, since gravity alone cannot get it there. A float switch inside the tank triggers the motor once water reaches a set level. Without one, condensate has nowhere to go but the floor.
Do mini split systems need a condensate pump?
Only if gravity drainage is not possible from the indoor unit’s location. Wall mounted heads installed above a window or far from an exterior wall usually need a compact pump like the RectorSeal 83352 Mini Blue. Units with a short, steeply sloped drain line to the outside can sometimes skip a pump entirely.
How loud is a condensate pump?
Most run quietly during normal cycling, but motor noise and vibration through the mounting surface both affect what you actually hear. Compact mini split pumps are generally engineered for bedrooms and offices, so they run quieter than larger furnace duty pumps. Mounting the pump on rubber isolators cuts down vibration noise further.
What size lift do I need for a condensate pump?
Measure the vertical distance from the pump to the drain point, then add roughly a foot of equivalent lift for every elbow in the tubing. A basement furnace pushing water up two floors needs a higher rated pump, such as the Diversitech CP-22, over a compact mini split model. Underestimating this number is the most common cause of a pump that runs constantly without keeping up.
How often should a condensate pump be cleaned?
Every three to six months for most residential systems, though heavy cooling season use calls for more frequent checks. Algae growth inside the reservoir and tubing is the usual culprit behind slow drainage. A quick flush with water and a mild vinegar solution clears most buildup.
What causes a condensate pump to fail?
A stuck or worn float switch is the most common failure, followed by a clogged check valve or discharge line. Motor burnout happens after years of frequent cycling, often from an undersized pump working harder than its rated lift allows. Mineral and algae buildup inside the tank restricts float movement long before the motor itself quits.
Is a safety switch necessary on a condensate pump?
Yes, whenever the pump sits above finished space like a ceiling or a floor with expensive flooring below. The switch shuts off the connected air handler, furnace or mini split if water rises past a safe level, preventing an overflow rather than just detecting one. Every pump in this comparison includes one.
Condensate pump vs gravity drain, which is better?
Gravity drainage is simpler and has no motor to fail, so it wins whenever the indoor unit sits above and near an exterior drain point. A pump becomes necessary once the unit sits below the drain line or too far from an exterior wall for a sloped gravity run. Where either option works, gravity drainage needs less maintenance over the life of the system.
Can a condensate pump be installed without a professional?
Many DIY-capable owners install these pumps themselves, since most use push fit tubing and simple mounting brackets. Wiring the safety switch into the HVAC control circuit is the step most likely to need an electrician or technician, especially on newer high efficiency furnaces.
The verdict
Worried about a slow leak turning into ceiling damage? The Little Giant VCMA-20ULS covers that with a proven safety switch and enough lift for most single zone jobs. Tight mini split installs are better served by the RectorSeal 83352 Mini Blue, since it hides inside the indoor unit housing. Step up to the Diversitech CP-22 when the drain run climbs higher than a standard pump can reach.
